The Definitive Guide to Downloading the SEW Gearbox Catalogue PDF

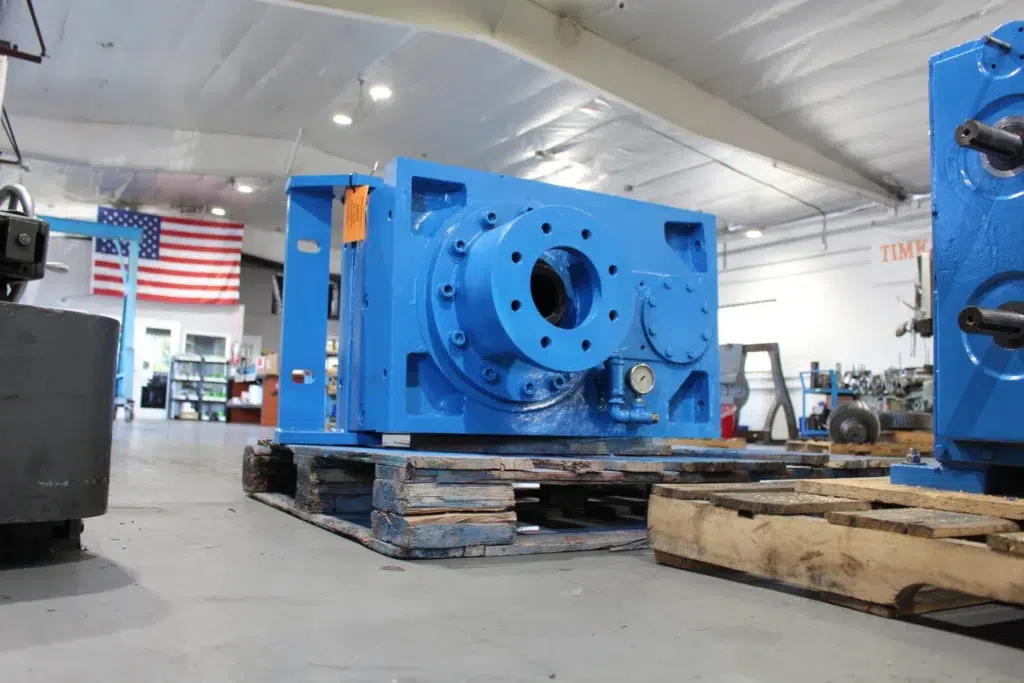

What the SEW Gearbox Catalogue PDF Actually Contains

The SEW gearbox catalogue PDF is the official technical reference for SEW-EURODRIVE’s full line of gear units and gearmotors, covering helical, parallel shaft, helical-bevel, helical-worm, and Spiroplan right-angle designs. Here is what you can find in it at a glance:

• Unit designations and model codes (R, F, K, S, W series) with full configuration breakdowns
• Power and torque ratings across all gear unit sizes and output speeds
• Mounting positions (M1 through M6) and corresponding oil fill quantities
• Service factors, efficiency ratings, and overhung load limits for project planning
• Input side components, adapter specifications, and motor options including MOVIMOT
• Corrosion protection, storage guidelines, and surface treatment options
• Noise levels, mass moments, of inertia, and dimensional data for engineering integration

The catalogue covers gear unit sizes starting from size 37, and efficiency figures range from 94% for three-stage helical units up to 98% for single-stage units. SEW-EURODRIVE is an AGMA member, so all specifications conform to AGMA standards.

One thing the catalogue does not tell you plainly: the weights listed for every unit exclude the oil fill. The actual lubricant quantity depends entirely on which mounting position you select, so never treat the listed shipping weight as your installed weight.

I’m Peter Clark, and in this guide I’ll walk you through exactly how to read, decode, and apply the SEW catalogue to your drive selection process, and where professional rebuilding fits in as a practical alternative to ordering new.

How to Use the SEW Gearbox Catalogue PDF for Drive Selection

Selecting a drive system requires matching your torque demands with the structural limits of the gear unit. The sew gearbox catalogue pdf provides comprehensive tables organized by output speed, gear ratio, and maximum torque. When you search through these tables, you must check the output torque for the desired output speed rather than relying solely on the nominal motor horsepower.

The actual output speed of a gearmotor depends on the motor load and supply system conditions. The values listed in the catalogue are nominal reference points. To avoid mechanical failure, limit the motor power on multi-stage gear units so it does not exceed the maximum permitted output torque.

Understanding how to read these tables is crucial for selecting a drive that can handle the physical demands of your application. You can find more details on how these specifications translate to real-world performance in our guide on the SEW Eurodrive Gearbox.

Downloading the Official SEW Gearbox Catalogue PDF

To download the official document, go to the documentation section of the manufacturer’s online support portal. Avoid downloading these documents from third-party file-sharing sites because industrial manufacturers update their documentation frequently to reflect design changes. A static PDF from an unofficial source might contain outdated dimensions or load ratings.

If you are dealing with a worn or noisy unit, having the official technical manual helps you identify the original specifications. However, when a gearbox fails, you do not always need to purchase a brand-new replacement. Professional Industrial Gearbox Repair can restore your unit to original factory specifications.

Finding CAD Data and Custom Documentation Packages

Modern engineering projects require exact physical dimensions for system integration. The online portal allows you to download matching CAD and CAE data alongside the standard PDF documentation. This integration ensures that your structural mounts, shafts, and couplings align perfectly with the gearbox.

Instead of downloading massive, generic catalogues, you can use the online portal to create a custom documentation package. This feature bundles only the specific chapters, dimensional drawings, and maintenance manuals relevant to your exact model numbers. Having these precise engineering specifications is critical when prepping a unit for a rebuild.

Decoding SEW Gear Unit Designations

The model codes on an SEW nameplate tell a complete story about the internal gearing, motor type, and mounting options. Reading these codes correctly allows you to identify replacement parts or specify a custom build. The modular design concept allows millions of combinations from standardized global components to create highly customized drive solutions.

Standard design configurations often combine different gear stages to achieve high reduction ratios. Multi-stage gearmotors use a primary gear unit coupled with a secondary gear unit to drop the output speed while multiplying torque. If your application requires a gear ratio or shaft configuration that is no longer standard, you may need Custom Gear Manufacturing to recreate obsolete internal components.

Standard Gearmotor Types and Code Meanings (R, F, K, S, W)

The first letter of the unit designation indicates the gear type:

• R Series: Helical gear units. These are inline drives offering high efficiency, typically between 94% and 98% depending on the number of stages.
• F Series: Parallel shaft helical gear units. These are slim, space-saving drives ideal for conveyor systems.
• K Series: Helical-bevel gear units. These are right-angle drives with high wear resistance and high torque capacity.
• S Series: Helical-worm gear units. These right-angle drives are cost-effective but have lower efficiency at high ratios.
• W Series: Spiroplan right-angle gear motors. These use a unique gearing profile to provide quiet operation.

Understanding these configurations is essential when referencing the Custom Gear Manufacturing Imperial Guide 2026 for replacement components.

Spiroplan Right-Angle Gearmotors vs Standard Units

Spiroplan right-angle gearmotors stand out from standard right-angle units due to their unique wear-free design. They utilize a specialized material combination and a lightweight aluminum housing. This construction minimizes friction, allowing the units to run cooler and quieter than standard helical-worm gearboxes.

After the initial run-in period, Spiroplan units operate below a sound pressure level of 58 dB(A) during four-pole operation on a 60 Hz supply system. This makes them ideal for noise-sensitive environments like food packaging lines and assembly areas. Their efficiency remains high across most ratios, unlike helical-worm units which can drop significantly when ratios increase.

Critical Project Planning and Engineering Factors

Proper project planning ensures your selected drive survives the daily stresses of your application. You must calculate the required service factor, overhung loads, and axial loads before finalizing any selection from the sew gearbox catalogue pdf. Ignoring these values leads to premature bearing failure or shaft breakage.

The service factor (fB) accounts for daily operating hours, starting frequency, and the shock load of your application. This factor ranges from 0.8 to 1.8 or higher. For helical-worm units, you must also apply additional service factors for ambient temperature (fB1) and cyclic duration (fB2). If you run a gearbox beyond these calculated limits, you will eventually need to understand Everything You Need to Know About Gearbox Repair to get your line running again.

Key Engineering Specifications in the SEW Gearbox Catalogue PDF

The catalogue lists precise specifications for different input adapters. For example, the AM280 adapter has a maximum rated power of 120 Hp (90 kW) at 1750 rpm. The mass moment of inertia for this specific adapter is 16268.75 × 10⁻⁴ lb-ft² (685 × 10⁻⁴ kgm²).

These values are critical when matching the gearbox to high-inertia loads or cycle-heavy applications. When these specifications are miscalculated, internal gear teeth can strip under the sudden load spikes. When a major failure occurs, reading The Ultimate Guide to Gearbox Rebuild is the first step toward restoring your drive system.

Mounting Positions and Lubrication Requirements

The mounting position (M1 through M6) determines how the gearbox is oriented in space and where the oil level plugs, drain plugs, and breathers are located. Changing a gearbox from an M1 (horizontal) to an M4 (vertical) mount without adjusting the oil level will cause rapid gear failure due to starvation at the top bearings.

The required lubricant fill quantity varies significantly based on this mounting position. If you store spare gearboxes for more than 12 months, you must use specialized rust preventatives and adjust the oil level before startup. Applying NOCO fluid paste during installation prevents contact corrosion on hollow shafts, making future teardowns much easier. For more information on physical teardowns, see our How to Rebuild Gearboxes Step by Step Guide.

Frequently Asked Questions about SEW Gearboxes

Before diving into the detailed questions, regular maintenance keeps these units running within these efficiency ranges. When wear does occur, consulting A Practical Guide to Precision Gearbox Rebuild Service can help you decide between a quick fix and a complete overhaul.

What is the run-in period for helical-worm and Spiroplan gear units?

Helical-worm and Spiroplan gear units require a run-in phase of approximately 48 hours to achieve maximum efficiency. During this initial operating period, the gear teeth undergo minor surface smoothing. You may notice slightly higher operating temperatures and a temporary drop in efficiency during this phase, which is completely normal.

Why do catalogue weights exclude the oil fill?

The catalogue lists weights without oil because the required lubricant fill quantity changes depending on the mounting position. A vertical mount (M4) often requires more than double the oil of a standard horizontal mount (M1) to ensure the upper bearings are fully submerged. Shipping weights are kept baseline so you can calculate the final weight based on your specific oil volume.

How does assembly fluid prevent contact corrosion?

Assembly fluid, such as NOCO fluid, acts as a protective barrier between the metal surfaces of hollow shaft gear units and the machine shaft. This fluid prevents contact corrosion caused by microscopic movements and moisture. Without this paste, the shaft and gearbox can rust-welded together, making future disassembly for maintenance or rebuilds extremely difficult without damaging the machinery.

Conclusion

Navigating the sew gearbox catalogue pdf is essential for specifying the right drive, but when an existing unit fails, buying a brand-new replacement is not your only option. At Specialty Gear Drives, we specialize in rebuilding and repairing heavy-duty industrial gearboxes to original factory standards.

Based in Largo, Florida, we serve industrial plants across the Southeast, including Georgia, Alabama, South Carolina, Mississippi, and Louisiana. We offer free pickup and delivery throughout our service area, along with a 24-48 hour expedited shop turnaround at our Florida facility to minimize your downtime.

Choosing to rebuild your SEW Eurodrive Gearbox with us can save you up to 60% compared to the cost of buying a new unit, and we back all of our work with a comprehensive 24-month warranty. Contact Us today to discuss your repair needs or schedule a pickup.
